What is a reference denture?
A reference denture is a new denture designed using reference information from an existing denture. A functional impression with border molding and wash impression is a key part of the reference denture technique to ensure the optimal fit of the new denture.

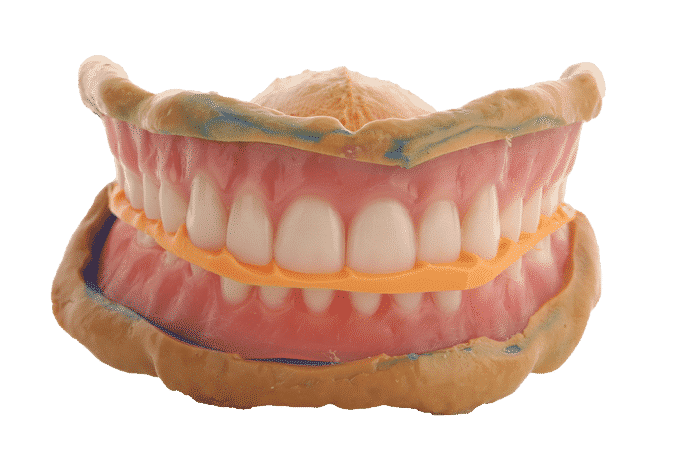

Reference Denture Impressions. Courtesy of Eric Kukucka
In other words, the reference denture is used as a guide to produce functional impressions, record a comfortable restorative jaw relation, position tooth arches, and produce a new digital removable prosthesis.

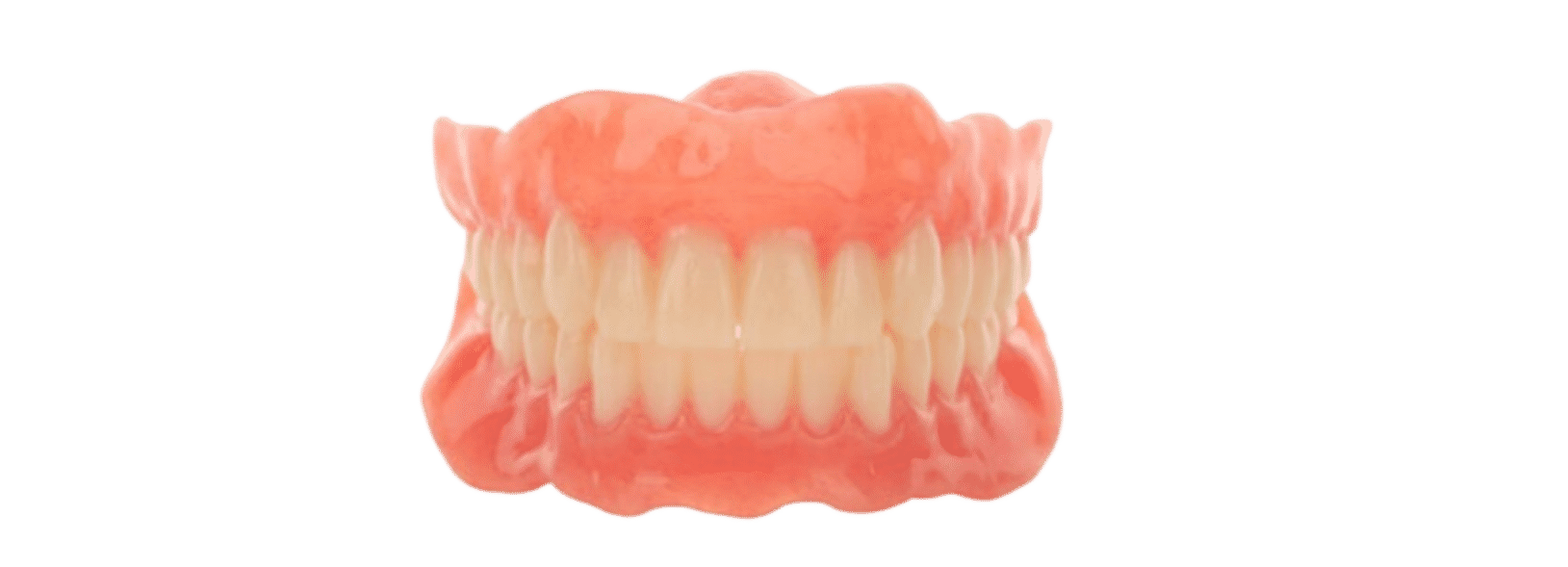

Final Digital Dentures. Courtesy of Eric Kukucka
Reference dentures can be designed both using TRIOS scans as well as scans acquired from a physical model with a lab scanner.
Key benefits of the Reference denture protocol in the treatment of edentulous patients:
- Being able to use the existing denture(s) as a tool instead of a wax rim for determining the OVD.
- Being able to use the existing denture(s) as a tool instead of a custom tray to capture a functional impression.
- Being able to transfer reference information such as midline, canine positions and smile line accurately to the new denture.
- Being able to effectively communicate change needs such as incisor exposure and tissue support based on the existing denture.
- Being able to effectively communicate patient’s wishes for their new prosthesis.
- A try-in denture (optional) can be used to check the fit, function, phonetics, and esthetics before the final reference denture delivery, but is not a mandatory step.
"It is a workflow which delivers increased patient acceptance and satisfaction, reduces postoperative adjustments, and ultimately, improves the patient experience as it requires fewer visits to the clinic." - Eric Kukucka
What is the difference between a reference denture and a copy denture?
The reference denture protocol is often confused with the copy denture protocol.
While they have some similarities the design workflows, scan protocols, and outcomes are distinctly different.

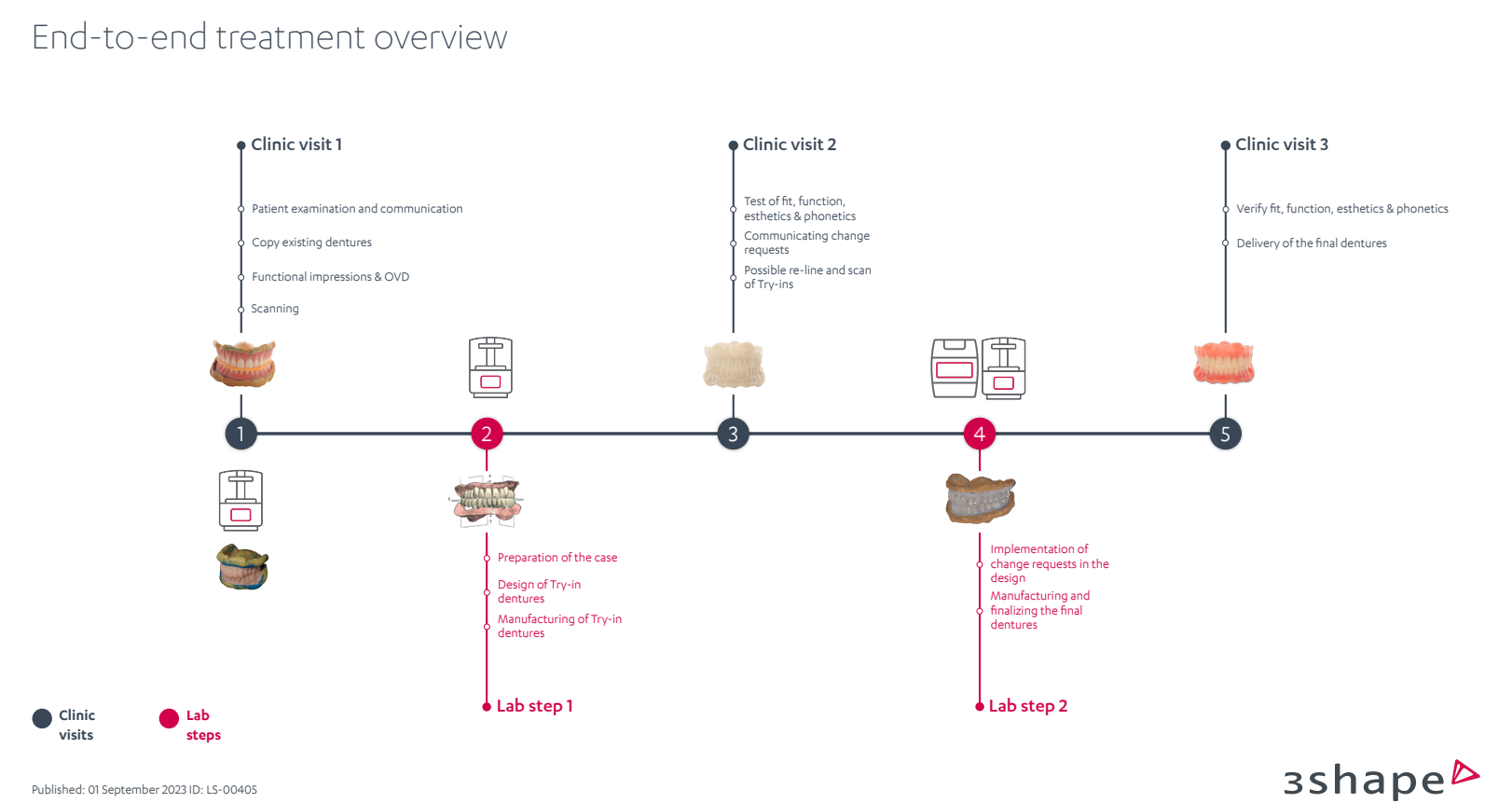

Reference denture workflow with a try-in stage

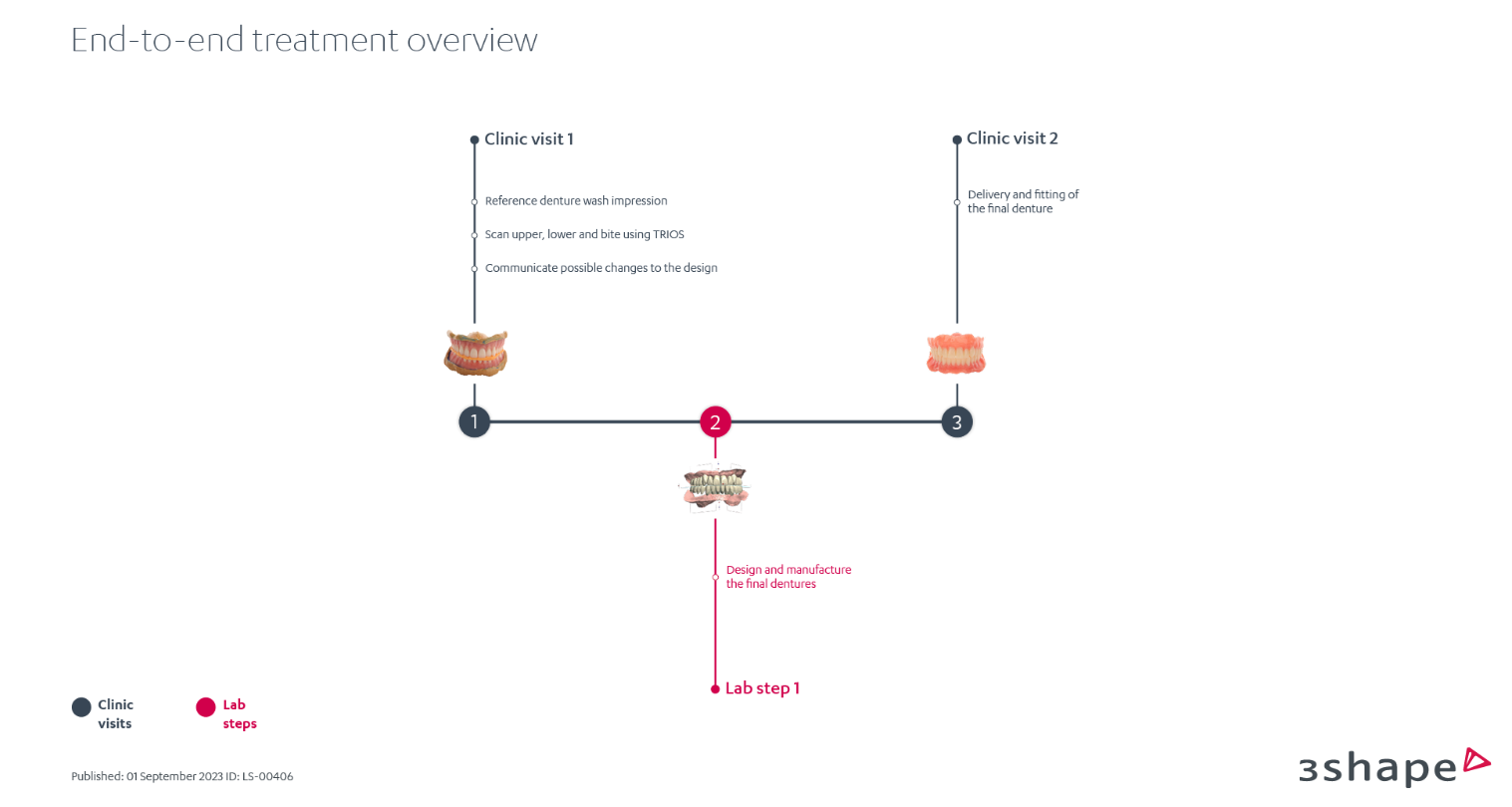

Reference denture workflow without a try-in stage
End to end Reference Denture Course https://setupguide.3shape.com/en/reference-denture/#/
