Sending an All On X Case to the 3Shape Design Service Platform for Design

Gloriana Meza
  • Updated

In this article, we will go over the requirements for sending an All on X case to us for design.



Important information:

  • Turnaround time: 24 hours
  • We need a complete order on Dental System or Exocad.

ALL ON X HYBRID (Patient doesn't have the abutment in the mouth)

Requirements:

  • A Complete 3Shape/Exocard Order.
  • Gingiva type Selection.
  • Length of centrals or Pre-Op scan.
  • The material for the final restoration.

Order Set up Example:

ALL ON X HYBRID OVER SCANNED TI BASES (Patient has the abutment on the mouth.

Requirements:

  • A Complete 3Shape/Exocard Order.
  • Gingiva type Selection.
  • Length of centrals or Pre-Op scan.
  • The material for the final restoration.

Order Set up Example:

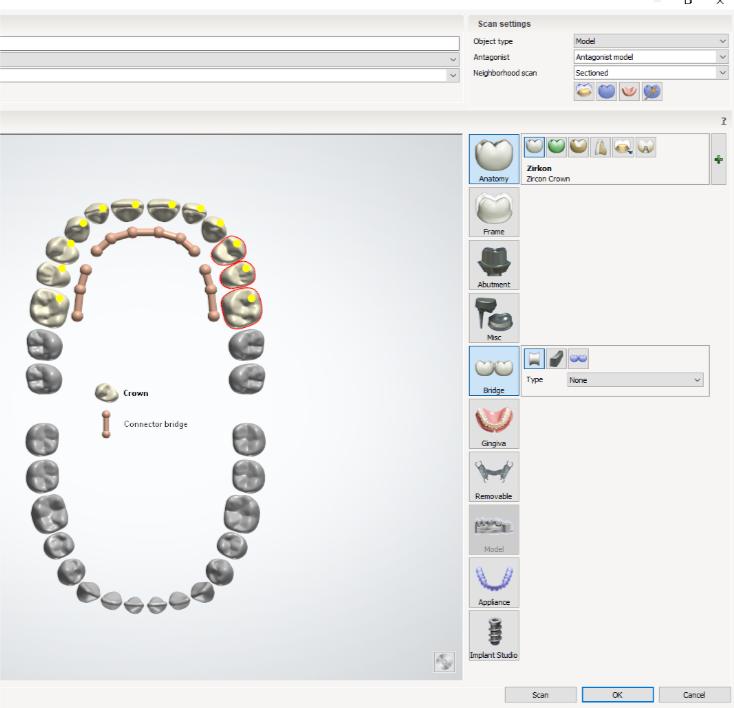

A screenshot of a computer Description automatically generated



ALL ON X PREPPED

Requirements:

  • A Complete 3Shape/Exocard Order.
  • Pre-Op scan.
  • The material for the final restoration.

This is a two-step process.

Step 1 - All on X Prepped Hybrid

The bar/bridge is designed.

Order Set up Example:

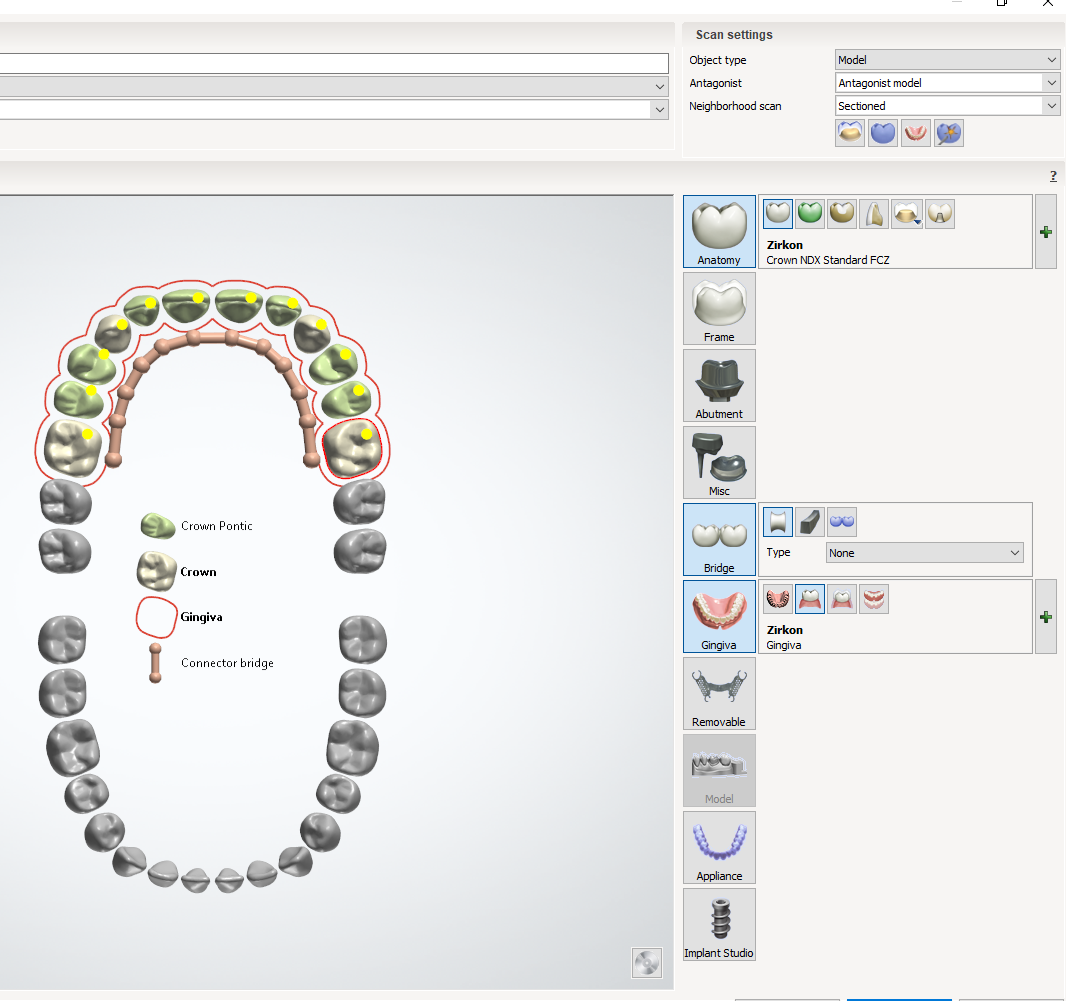

A screenshot of a computer Description automatically generated

Step 2 – Crowns

The initial design is verified, copied, appended, and resubmitted to the 3Shape Design Services Platform under LUCID for Final Crowns.

Order Set up Example:

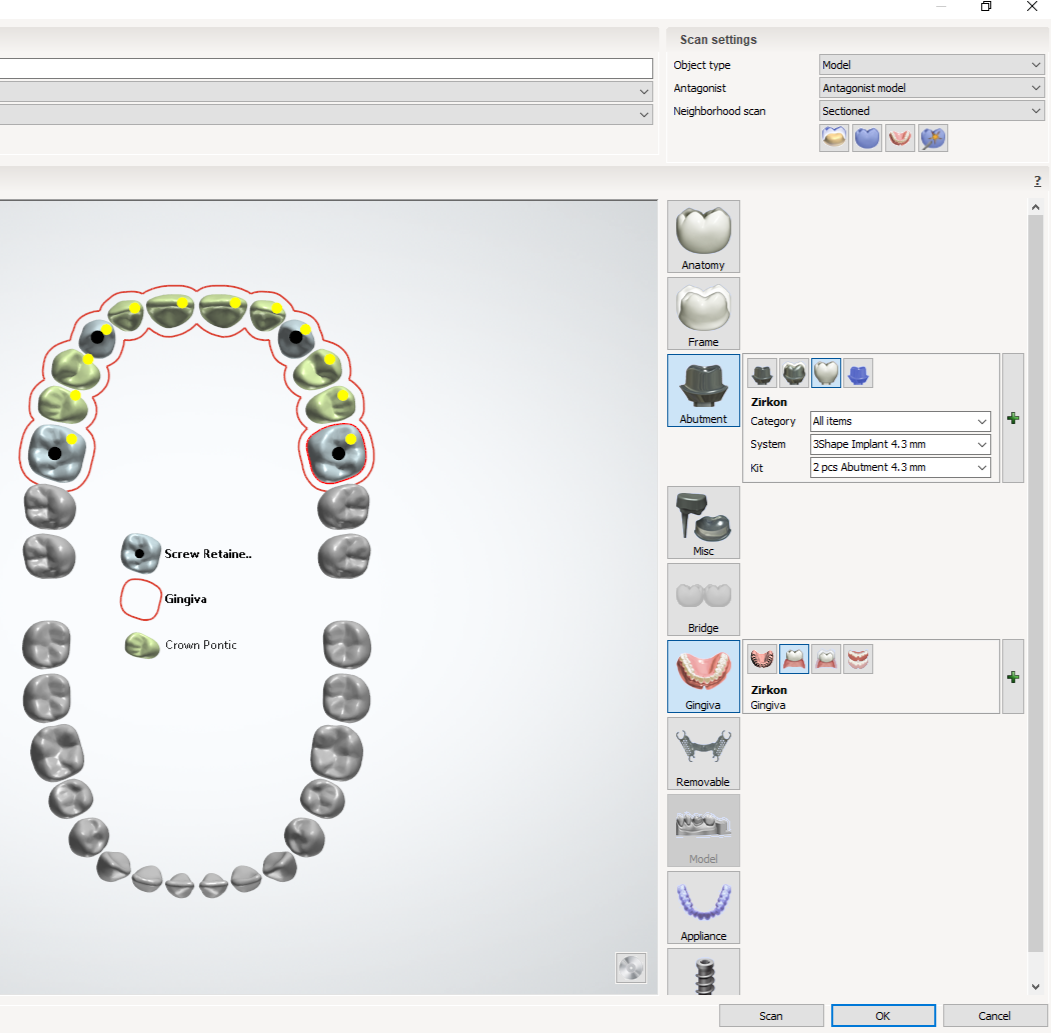

A screenshot of a computer Description automatically generated

Frequently asked questions:

What is a Fixed Hybrid Denture?

  • A full-arch prosthesis supported by dental implants.
  • Combines the aesthetics of dentures with the stability of implants.
  • Typically uses 4, 6, or more implants (All-on-4, All-on-6, All-on-X).
  • Implants fuse to the jawbone for a secure fit and natural function.


Design Capabilities for Hybrid Cases

  • Bar Designs:
    Not currently offered outside of the Thimble prep bridge cases.
  • Split Files (Base + Teeth):
    Not available.
    Only one STL file is provided (teeth and gingiva together)

Note: Orders will be placed on hold if the information is missing. Designers are unable to make changes to the order.

If you have any questions, our Customer Support team is here to help!

Email: designservices@3shape.com

Phone: +1 602-688-4133

Live Chat: Available Monday – Friday, 7:00 AM – 3:00 PM (MST)

International Support: +44 159-572-8586, Monday – Friday, 9:00 AM – 6:00 PM (CET)

We’re happy to assist you with any questions or concerns!
