In this article, we will go over some important aspects of this offering.
Our most commonly used design indication utilizes 3Shape Design Services materials to streamline compatibility with most manufacturing systems.
- 3Shape Dental System: We support case design with 3Shape Dental System versions 2021 through 2025.
Order creation: You may submit your STL files in a .zip folder. We create the order for you using the 2024 Dental System version for an extra fee.
- Turn-around time: 24 Business Hours. We do not offer rushes.

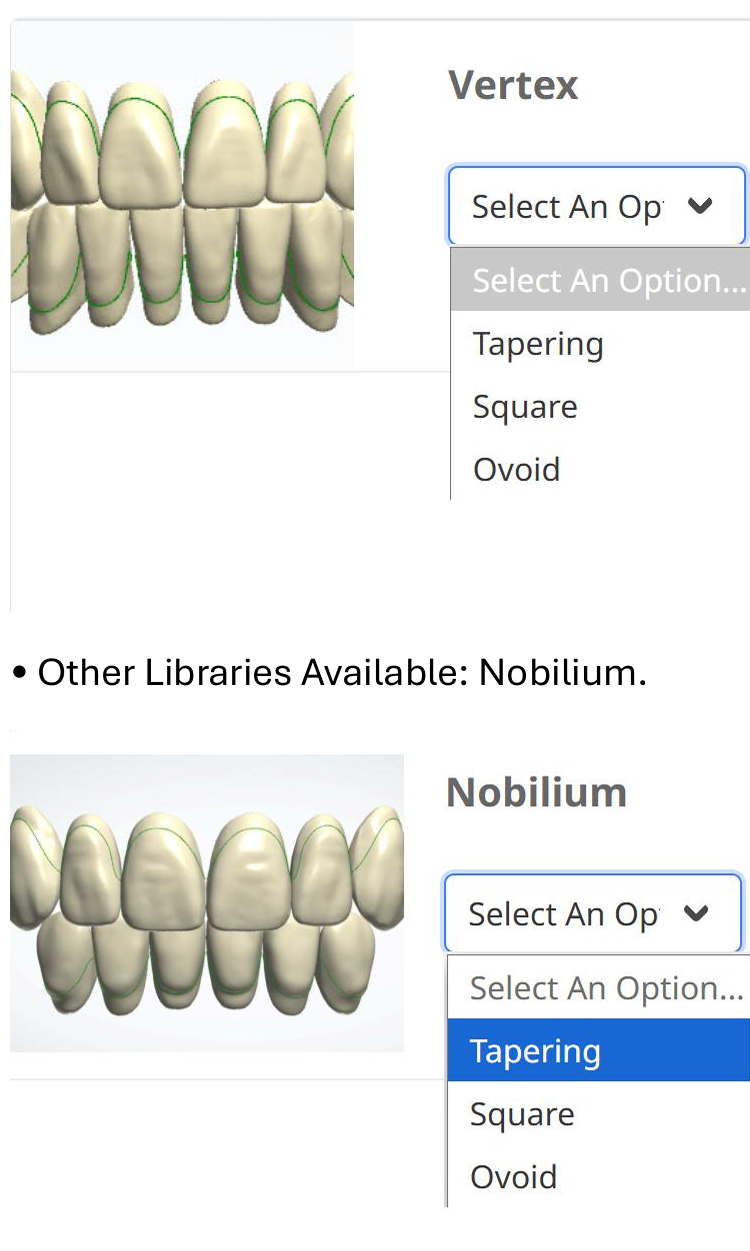

- Current Teeth Libraries:
- Default Library: Vertex
- Other Libraries Available: Nobilium.
- Posterior Anatomy options are available.
Material selection in the 3Shape form:
- FCDC Teeth and Base (This is a3Shape Design Service's own material file)
- Click here to know how to import the 3Shape Design Service Denture DME into your 3Shape Software.
- If you would like to use a different material, it must be tested and approved first.
- Standard Denture Offering - Customized Material - Approval Process
Redesign Options
- Redesigns allowed for free: 1
- Redesigns allowed when the try-in fits well, but VDO is off: 1.
-
Redesigns allowed when the bite does not fit well: 1
- Note:
- If the teeth library needs to be changed, a new case must be submitted.
- If a second or any additional redesign is required, a new case must be submitted.
- If you plan to send a completely new scan, it will need to be submitted as a new case.
Important!
If there is any mistake in the design or the instructions are not followed, the customer can submit the case for a redesign, and our design team will redesign the case without any extra charge. Click here to Know How to submit a case for redesign on the 3Shape Design Service Platform
Output:
- Output Files: Try-in and Final.
- Output Format: STLs for printing and/or CAM5 files for milling.
Type of Scans we received:
If you are sending Models:
- Select Model as the object type in the 3Shape order form.

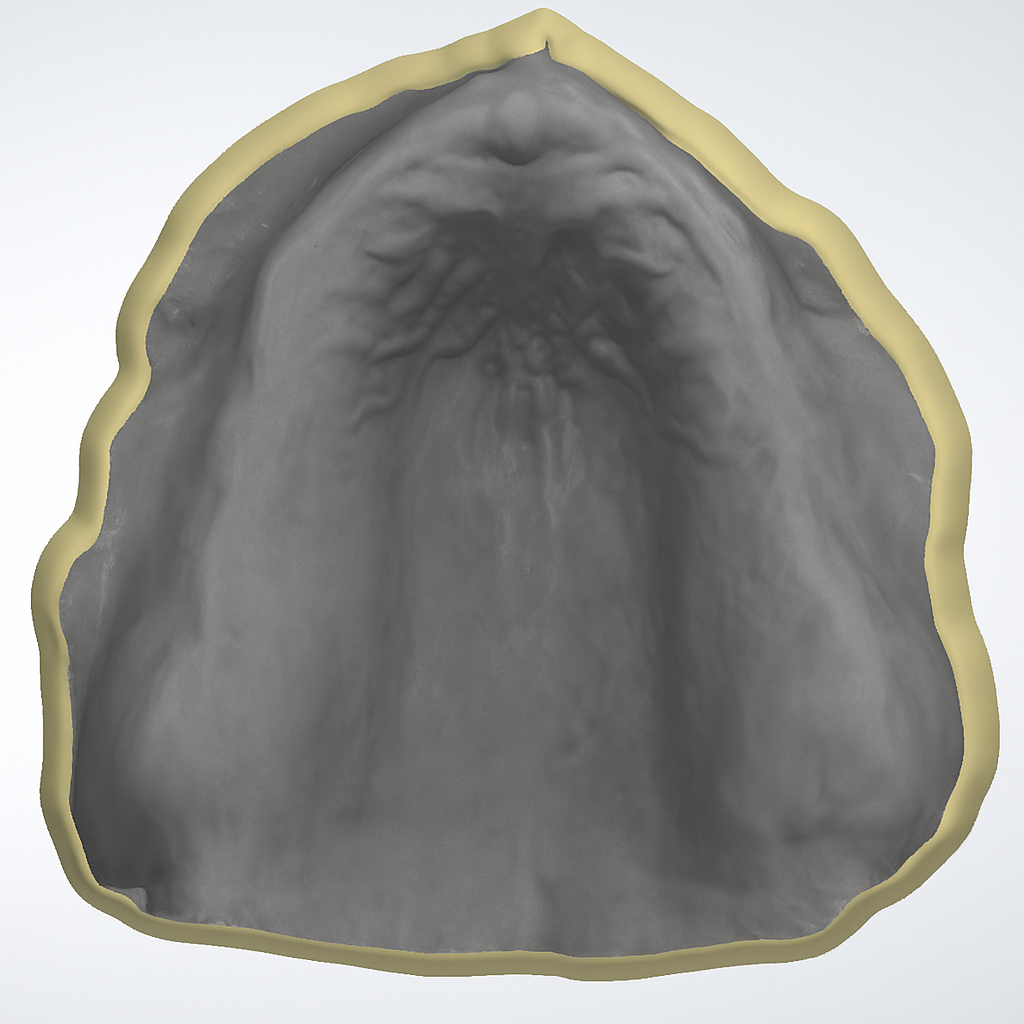

- Scanned models must have closed bases.
- A bite registration must be included.
- Upper, lower, and Bite registration STL files are required and must be properly aligned with the correct VDO.
- Select Digital Impression as the object type in the 3Shape order form.
- Upper, lower, and Bite registration STL files are required and must be properly aligned with the correct VDO.
-
For digital impressions, you can send the current patient's denture to be used as a reference. and must be aligned wth the VDO.
