In this article, we will review how to pre-mark margins for a case where you want a specific margin to be followed:

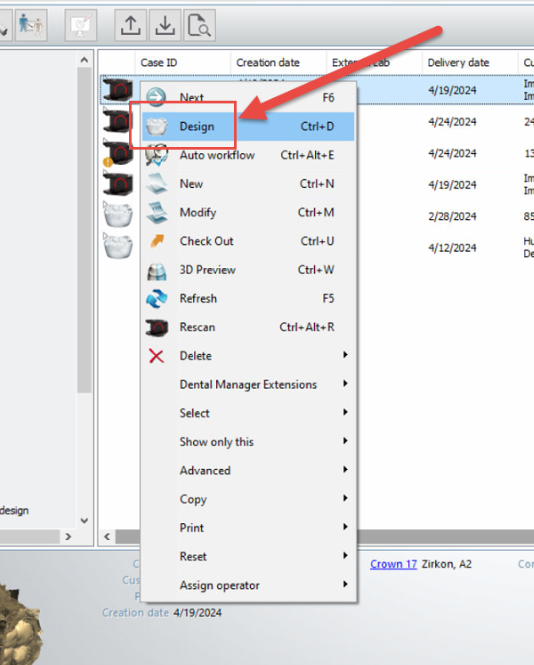

1. The first step will be to right-click on the case and select the "Design" option:
After you click on that, the dental designer will open, and a total of 7 steps will display on the top center of the screen:
2. The second step, called "preparation", can be avoided for this process, as our designers will need to align it properly when they are designing as well, so you can skip past this part:
3. The third step, called "segmentation" is where you will need to mark the margins:
Use the tool you feel more comfortable with and draw the margin line you want our designers to follow:
4. Once you have marked it, the only step left will be to confirm it has been marked with no issues, for this move to step number 5, sometimes there is going to be an error message like this:
To fix it please confirm the margin you drew and click "Recalc"
After that, just save the changes and send it for us to design!

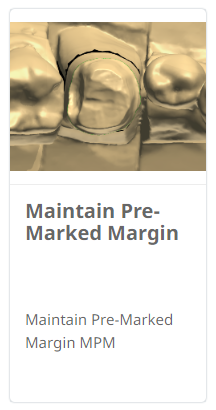

Please once submitting the case make sure to select this guide code for our designers to know there is a pre-marked margin and that they should follow it:
