In this article, we will go over some important aspects of this offering.
The Partial Denture design indication by 3Shape Design Services brings a simplified workflow to streamline the level of communication when sending orders for denture design.
3Shape Dental System: We support case design with 3Shape Dental System versions 2021 through 2025.
Turn-around time: 24 Business Hours. We do not offer rushes.

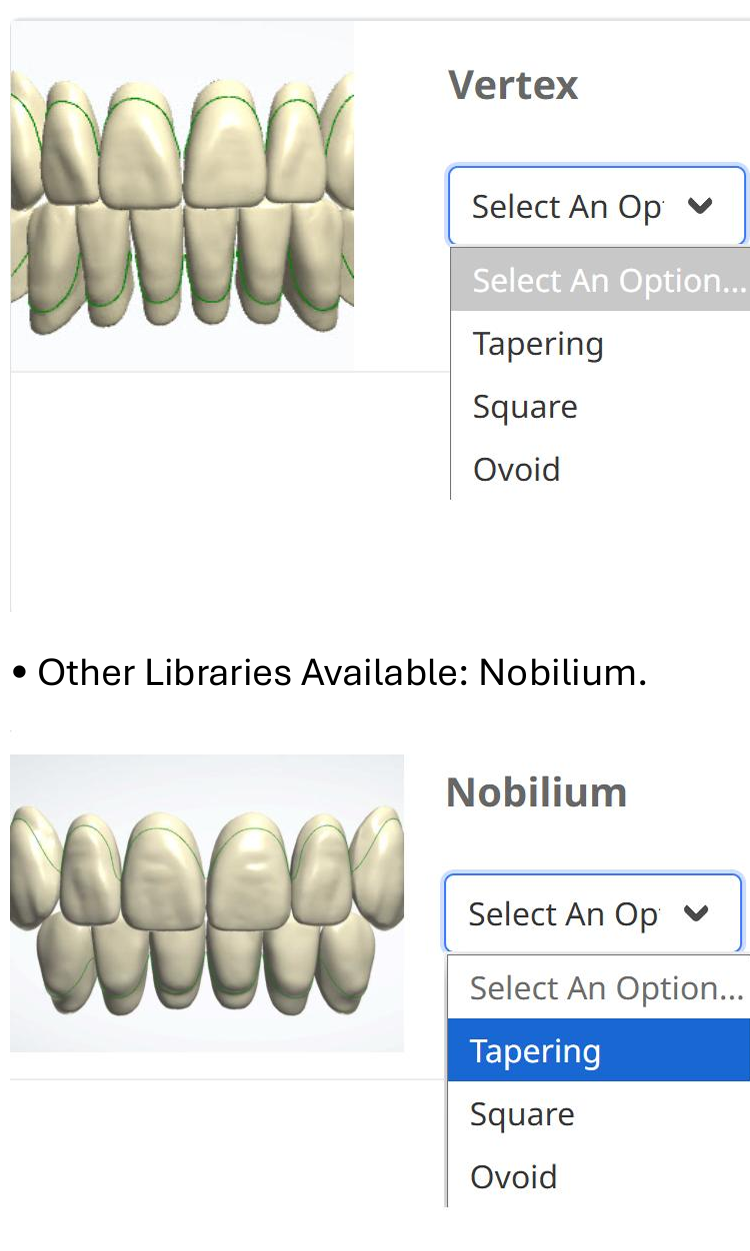

Current Teeth Libraries:
Default Library: Vertex
Other Libraries Available: Nobilium.
Posterior Anatomy options are available.
Material options:
Flexible
Acetal Resin
Acrylic.
Material selection in the 3Shape form:
FCDC Teeth and Base (This is a3Shape Design Service's own material file)
Click here to know how to import the 3Shape Design Service Denture DME into your 3Shape Software.
If you would like to use a different material, it must be tested and approved first.
Standard Denture Offering - Customized Material - Approval Process
Redesign Options
Redesigns allowed for free: 1
Redesigns allowed when the try-in fits well, but VDO is off: 1.
-
Redesigns allowed when the bite does not fit well: 1
Note:
If the teeth library needs to be changed, a new case must be submitted.
If a second or any additional redesign is required, a new case must be submitted.
If you plan to send a completely new scan, it will need to be submitted as a new case.
Important!
If there is any mistake in the design or the instructions are not followed, the customer can submit the case for a redesign, and our design team will redesign the case without any extra charge. Click here to Know How to submit a case for redesign on the 3Shape Design Service Platform
Output:
Output Files: Try-in and Final.
Output Format: STLs for printing and/or CAM5 files for milling.
Type of Scans we received:
If you are sending Models:
Select Model as the object type in the 3Shape order form.
Scanned models must have closed bases.
A bite registration must be included.
Upper, lower, and Bite registration STL files are required and must be properly aligned with the correct VDO.
- Select Digital Impression as the object type in the 3Shape order form.
- Upper, lower, and Bite registration STL files are required and must be properly aligned with the correct VDO.
-
For digital impressions, you can send the current patient's denture to be used as a reference. and must be aligned wth the VDO.
If you have any questions, our Customer Support team is here to help!
Email: designservices@3shape.com
Phone: +1 602-688-4133
Live Chat: Available Monday – Friday, 7:00 AM – 3:00 PM (MST)
International Support: +44 159-572-8586, Monday – Friday, 9:00 AM – 6:00 PM (CET)
We’re happy to assist you with any questions or concerns!
